Hollow-shaft encoder with a whopping four-in. hollow bore

April 15, 2016 By Lisa Eitel Leave a Comment

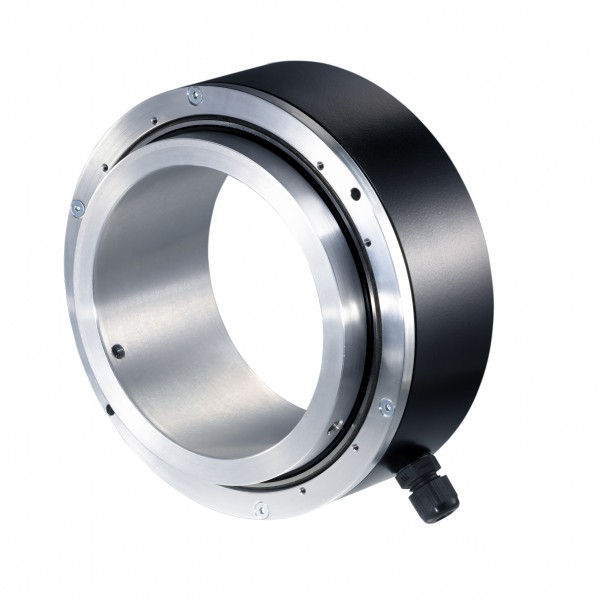

Industrial Encoder Corp big bore encoderIndustrial Encoder Corp. now offers its biggest bore hollow-shaft encoder yet.

The IH150 series encoder is for the most demanding of applications …

… and is available with a whopping four-in. hollow bore.

Industrial Encoder Corp. has one of the widest ranges of hollow bore encoders in the industry — with bores from 0.25 to 4 in. and everything in between.

If it is not in standard product offerings, the manufacturer can also tailor custom designs to even demanding requirements.

For more information about this durable encoder, call Industrial Encoder Corp. at (888) 277-6205 or email tony.petrecca@globalencoder.ca.

IH 150 incremental hollow-shaft encoder general specifications

Heavy-duty construction • Shaft mounted • Range of shaft bores — 2.5 to 4 in. (65 to 100 mm)  •  5,000 PPR maximum • 4.75 to 30 V • RS 422 compatible • 300-kHz maximum frequency

IH 150 incremental hollow-shaft encoder electrical specifications

Supply voltage — 4.75 to 30 Vdc • Current consumption — 40 mA maximum

Output circuit — Push-Pull, RS 422A  • Impulse frequency — 300 kHz (max)

Signal level (high) — Vcc – 0.7 V  •  Signal level (low) — 0.3 V maximum

Short circuit protection — 100%

IH 150 incremental hollow-shaft encoder mechanical specifications

Cover — Aluminum •  Body — aluminum • Shaft — stainless steel

Speed — 4,000 rpm maximum •  Torque — greater than 0.02 Nm

Loading — Axial 80 N, Radial 60 N  • Environmental protection to IP 65

Operating temperature of -200 to +700 C (-40 to +1,580° F) — or to +1,000° C (+2,120° F) optional  • Weight — 720 g (1.584 1b)

BIG BORE HOLLOW SHAFT ENCODER
