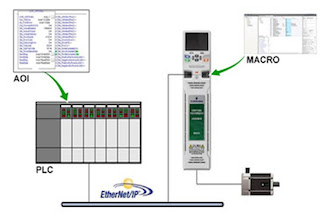

Control Techniques’ Add-On Instruction (AOI) offering makes it easy to integrate Unidrive M with Allen-Bradley CompactLogix and ControlLogix PLCs. An open and editable file, the Unidrive M AOI integrates easily into the Logix architecture allowing for further future flexibility.

This free AOI download provides an easy path to integrate Control Techniques’ Advanced Motion Controller (AMC) on-board the Unidrive M700 and M702 with RSLogix 5000 programming software. Macro files for use with Unidrive M Connect automatically set the parameters needed for the AMC onboard Unidrive M700 & M702 to integrate with the AOI. Simply download and import the Unidrive M AMC AOI into the Logix software to take full advantage of the AMC functionality.

Features include:

• 8 Absolute Index Positions
• 6 Homing Types
• Forward/Reverse Jogging and Velocity Commands
• Drive Status and Position Feedback
• Fault and Trip Diagnostics
• Current Limit Control
• Motor Brake Control
• Hardware and Software Over-Travel Limits

To find out more, visit the PLC webpage and download the Add-On Instructions for Allen- Bradley® PLCs.
