PI (Physik Instrumente) has expanded its E-709 family of low-cost digital piezo nanopositioning controllers with a new plug-in module for the C-885 PIMotionMaster modular controller system.

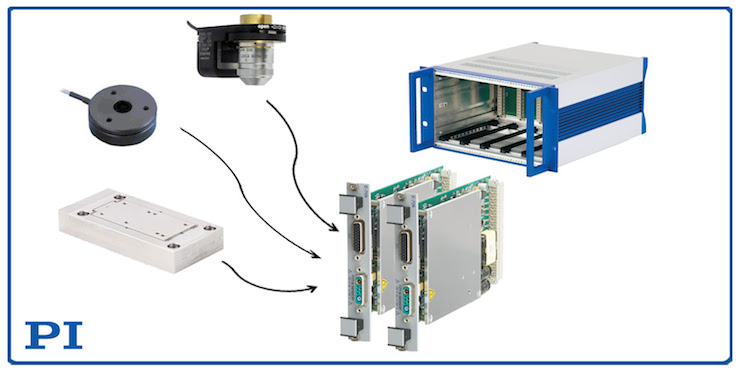

The PIMotionMaster system allows the combination of different drive technologies, controlled through one interface via one software package. For example, stepper motor stages, closed-loop servo motor positioners, and fast piezo-driven nano-focus devices can now be operated from one controller. Up to 20 control cards can be plugged into one 19-in. rack.
The latest piezo control module, the E-709.1CC885, supports functions including wave generator, data recorder, auto zero, and I/O triggers. With a sensor update rate of 10 kHz, two notch filters and linearization algorithms based on 5th-order polynomials it provides exceptionally accurate motion with sub-nanometer precision. The E-709 card combines a power amplifier (-30 to 130 V output), signal conditioning circuitry for capacitance sensors and a digital servo. Piezo controllers with digital servo offer the advantage of higher linearity, and easy access to advanced features in comparison to conventional analog piezo controllers. A comprehensive software package is included: drivers for LabVIEW, dynamic libraries for Windows and Linux, MATLAB, MetaMorph, µManager, Andor iQ. Interfaces include USB, SPI, RS-232, and analog.
After the modules are installed in the rack, individual axis configuration and movement is easily set-up using the included PIMikroMove software, a comprehensive Windows GUI that does not require programming knowledge for commissioning or direct operation.
Modules are currently available for PI translation/rotation stages equipped with:
- DC motors
- 3-phase motors
- Stepper motors
- Piezo flexure positioners
- Piezo ultrasonic motors
- PiezoWalk® nanopositioning motors
- Piezo inertia motors
Fields of applications include precision motion control in automation, nanopositioning, photonics, semiconductor testing, laser machining.
For more information, visit www.pi-usa.us.
