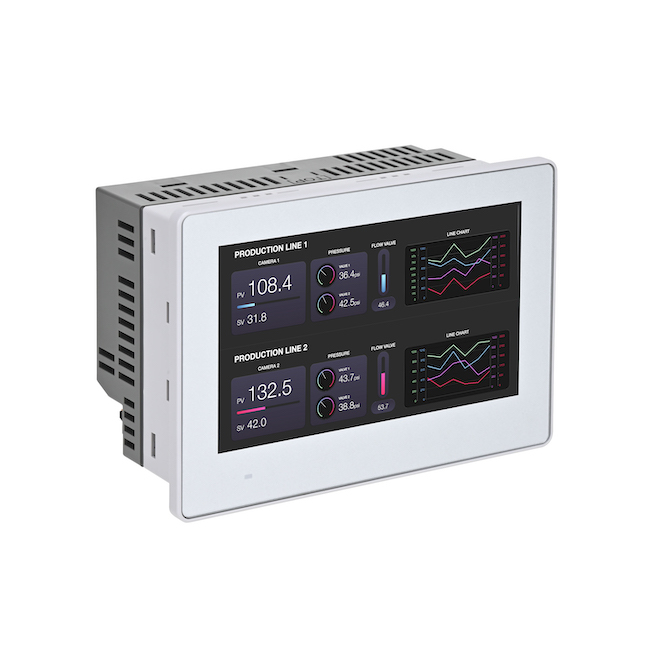

IDEC Corporation has updated its SmartAXIS touch family with the new FT1J Series combined PLC+HMI. This device combines a built-in full function controller, both onboard and expandable I/O, and an advanced technology 4.3-in. touchscreen display, in a compact all-in-one form factor that is rightsized for visualizing and automating a wide range of applications. The FT1J Series builds on the success of the FT1A-C and -M Series 3.8-in. PLC+HMIs, which remain available, and provides designers with another size option.
An all-in-one PLC+HMI requires far less panel door and interior space than individual devices. The unit’s thin bezel provides the greatest possible display area compared with its installation footprint, and the entire package requires only a shallow mounting depth clearance. Installation is simplified because the PLC and HMI are internally connected, share the same network connection, require only one power supply (and consumes less power than individually separate PLC and HMI installations), and all connections use push-in wiring connectors. Furthermore, the FT1J is ready to use and communicate right out of the box. End users configure the PLC+HMI with an intuitive and easily-used integrated development environment for both PLC and HMI functions, providing significant configuration and programming efficiencies.
The integrated PLC and HMI each have their own dedicated CPU and user memory for optimized scan time performance, and they communicate natively with each other. Built-in I/O includes 8 points of dc inputs (configurable as all discrete, or 6 discrete and 2 analog 0-10 Vdc or 4-20 mA 12-bit). Discrete inputs can operate as high-speed counters up to 20 KHz, with a maximum of 4 points of single-phase and 1 point of two-phase. For discrete outputs, a relay version provides 4 points of 2 A relay outputs, while a transistor version provides 4 points of 0.5 A transistor outputs. The transistor version also provides 2 points of 0-10 Vdc or 4-20 mA analog outputs. Built-in transistor outputs are also pulse capable up to 200 KHz.
The FT1J supports up to two expansion cartridges of discrete or analog I/O, in a variety of configurations and including a 2-point RTD/thermocouple analog input version. All analog inputs and outputs are 12-bit resolution. Also, designers can use the Ethernet port and the SX8R Bus Coupler to provide expanded amounts of remote I/O.
The HMI’s projected capacitive touch panel (PCAP) advanced technology—like what is used for smartphones and tablets—saves space and improves performance, while providing 480 x 272 resolution and 16 million colors. Besides being water- and scratch-resistant, PCAP is very responsive, and it resists false signals when dirt or water droplets are present on the HMI face. Fewer touchscreen layers and better light transmission ratings mean less backlight power is needed, and the display provides an industry-leading 500 cd/m² brightness level and 50,000-hour backlight life. In addition to being multi-touch, users can interact with the touchscreen HMI while using thin gloves. The front bezel carries no branding, of interest to many OEMs.
Two USB-A ports support flash drives for data logging, recipes, and program transfer—along with dongles for speakers, Wi-Fi, and Bluetooth. The embedded Ethernet port provides users with easy access for remote maintenance and communication, and the Modbus TCP/IP, BACnet IP, EtherNet/IP, and MQTT protocols are supported for connecting with other intelligent devices. The built-in RS232C and RS422/485 serial communication ports support Modbus RTU and allow the FT1J to communicate to other serial PLCs or devices, like barcode readers or temperature controllers. A main FT1J can operate up to 15 other IDEC HMI devices over the serial port using OI Link communication, which simplifies wiring and reduces communication loading. The FT1J also supports the concurrent use of up to three other protocols.
Many communication options are available for users to create automation and IIoT solutions incorporating multiple industrial protocols, the FTP protocol, remote monitoring and control, email/text messaging, Twitter/X, iOS and Android apps, and custom web pages.
For more information, visit www.idec.com.
